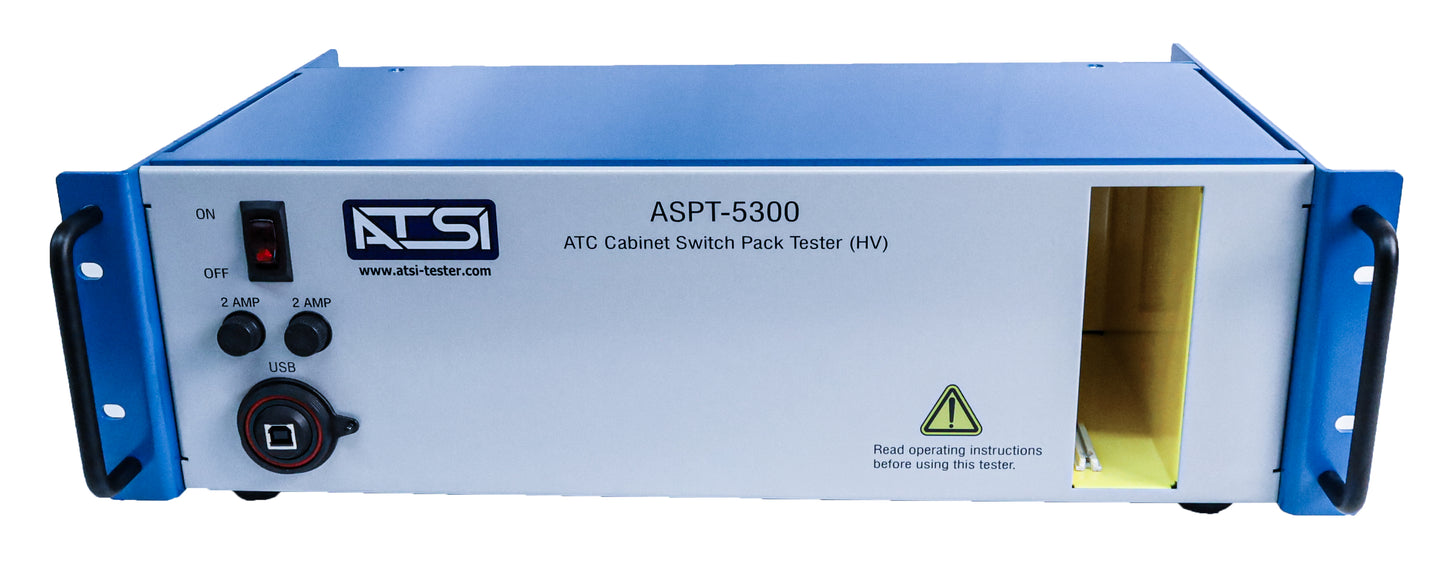

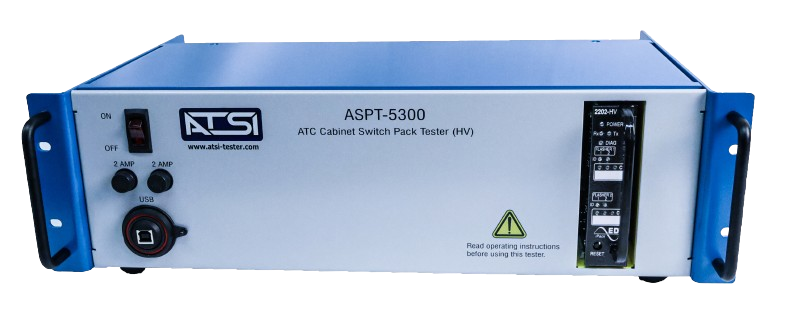

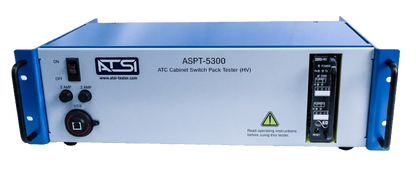

The ASPT-5300 ATC Cabinet Switch Pack Tester (HV) will run a series of comprehensive tests on the Model 2202-HV HDSP/FU. The Model 2202-HV HDSP/FU is an important component in the ATC Cabinet Monitoring System.
The Model 2202-HV HDSP/FU not only provides field output drivers but also monitors the voltage and current for each of the field outputs. These voltage and current measurements are reported back to the Cabinet Monitor Unit (CMU) over a serial bus connection.
The role of the CMU is to transfer the cabinet to a flashing control mode if an unsafe condition is detected. In order for the CMU to reliably detect unsafe conditions, it is critical that the voltage and current measurements reported by the Model 2202-HV HDSP/FU are accurate.
The ATC Cabinet Standard (ATC 5301) requires that the voltage and current measurements be accurate to ± 2% regardless of phase or wave-shape. The only way to ensure that each unit meets these requirements is through periodic testing.
NOTE: Due to a current lack of demand, we do not manufacture a tester for the Low Voltage (DC) HDSP/FU. If you are interested in a tester, please click "Contact Us" at the top of the page.
If you are looking for calibration or repair service, please click the link to "Schedule Service" on the top of this page.
