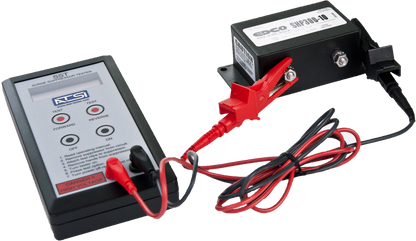

Surge Suppressor Tester

The Surge Suppressor Tester is designed to quickly and easily test all commonly used transient voltage suppressors: metal-oxide varistors (MOVs), gas-discharge tubes (GDTs), silicon avalanche diodes (SADs), thyristor surge protective devices (TSPDs), and hybrid devices.
The tester's 1mA DC current source up to 1000 volts has both peak and average-reading detection to provide complete test parameters for both crowbar and clamp devices. Measurements are displayed with a 0.1V resolution.
The tester is capable of testing suppressors with a filtering capacitor up to 200uF.

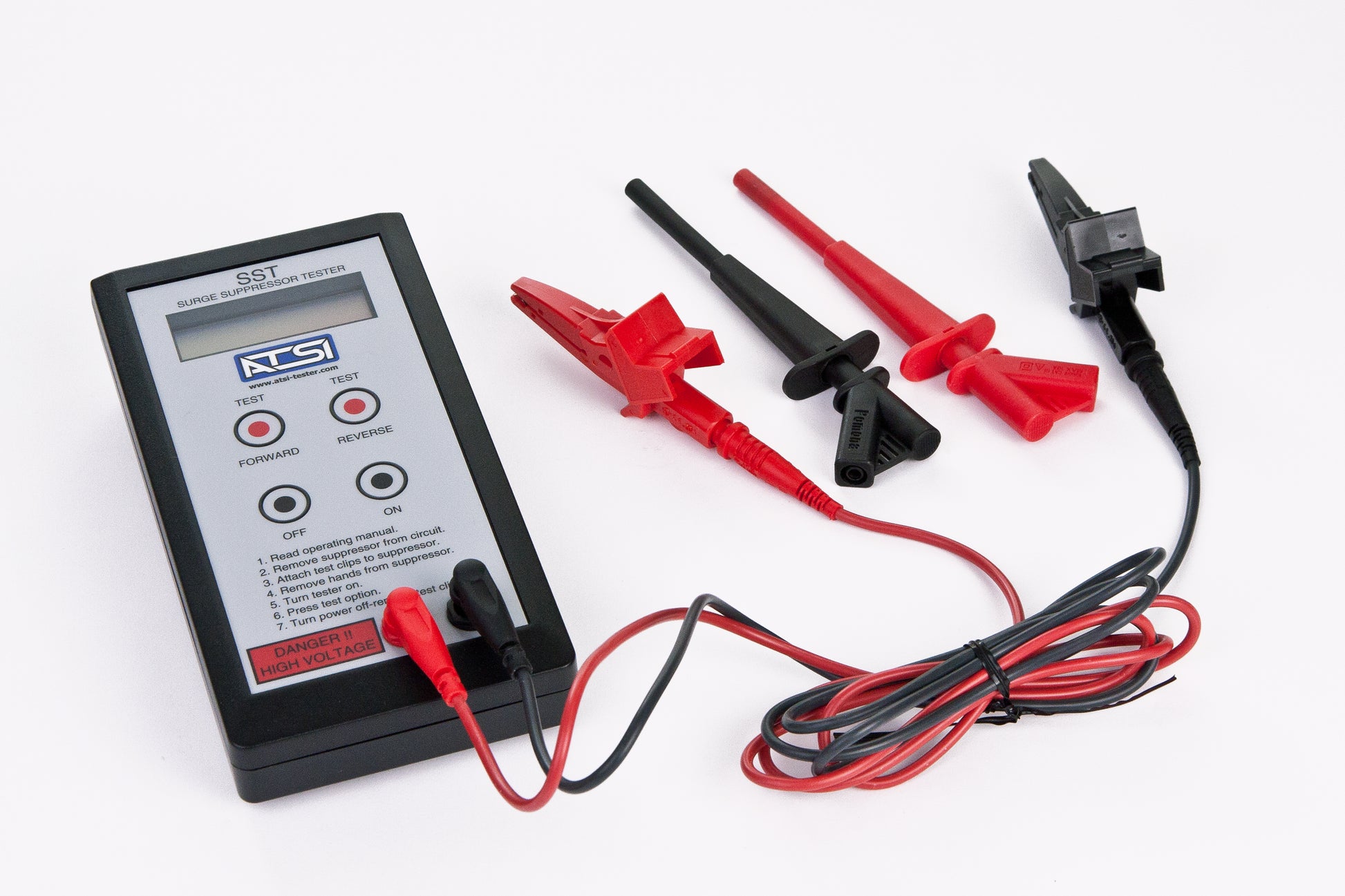

Includes:

• Soft Carrying Case (Soft Carrying Case not included if the optional Hard Shell Carrying Case is ordered)
• High Voltage Test Leads
• Alligator Clips
• Maxi-Pincers
• Operating Manual
• 1 Year Warranty

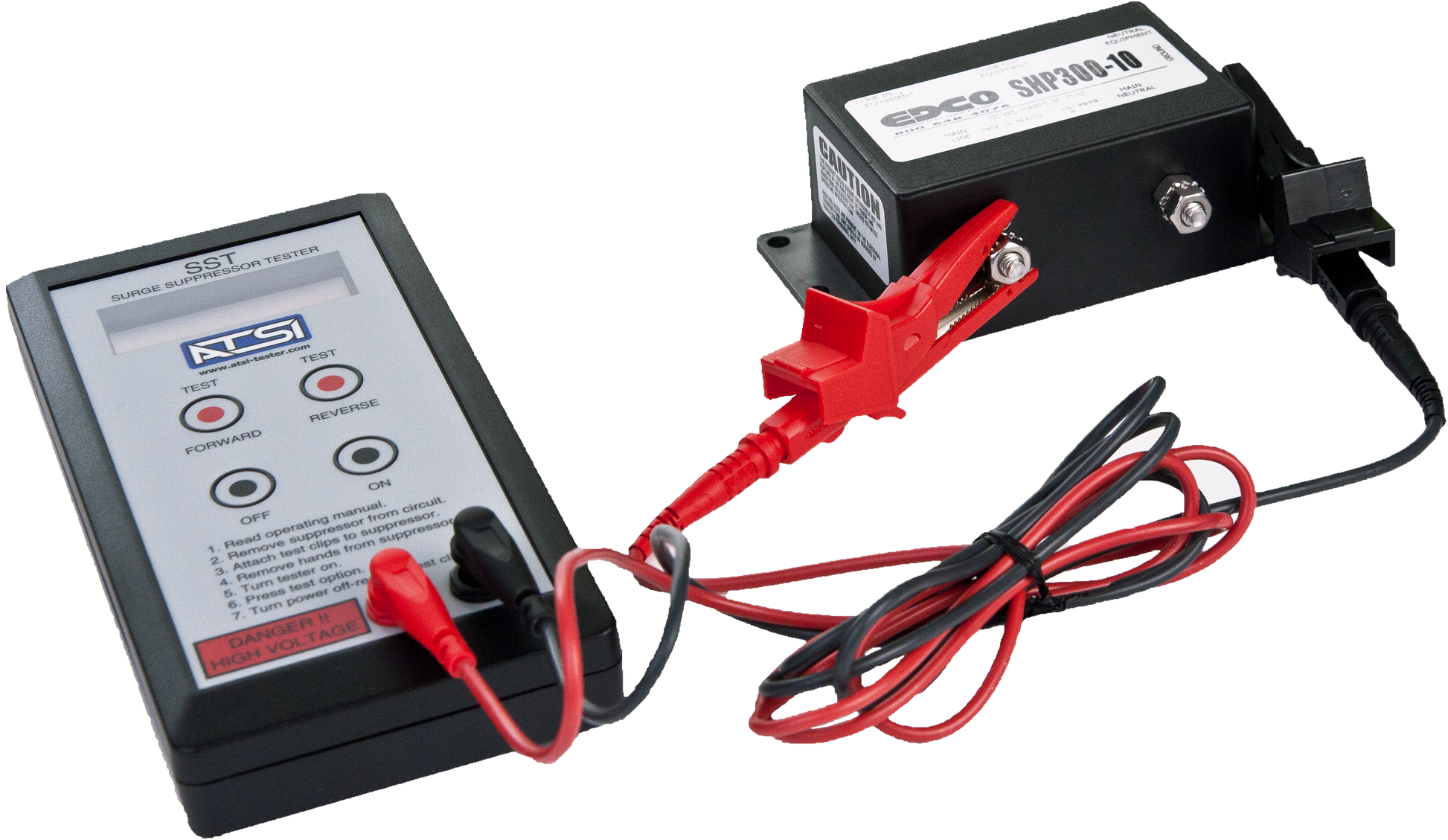

(Suppressor is pictured for reference only and is not included in the purchase of the SST 450)

If you are looking for calibration or repair service, please click the link to "Schedule Service" on the top of this page.
