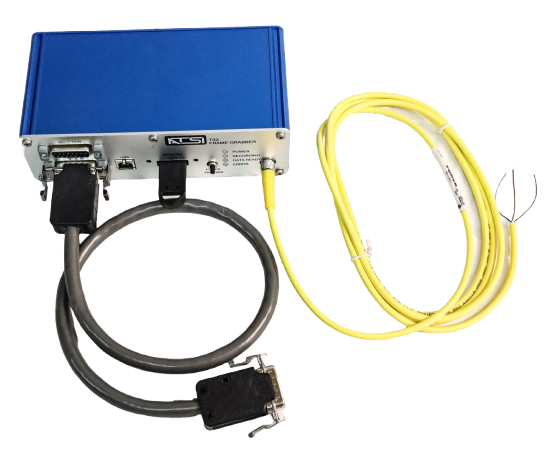

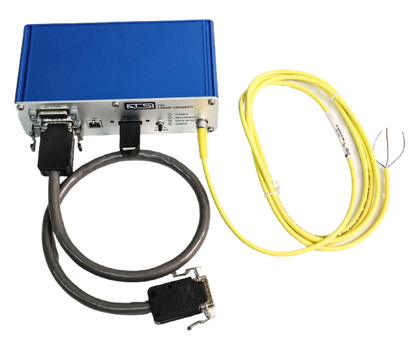

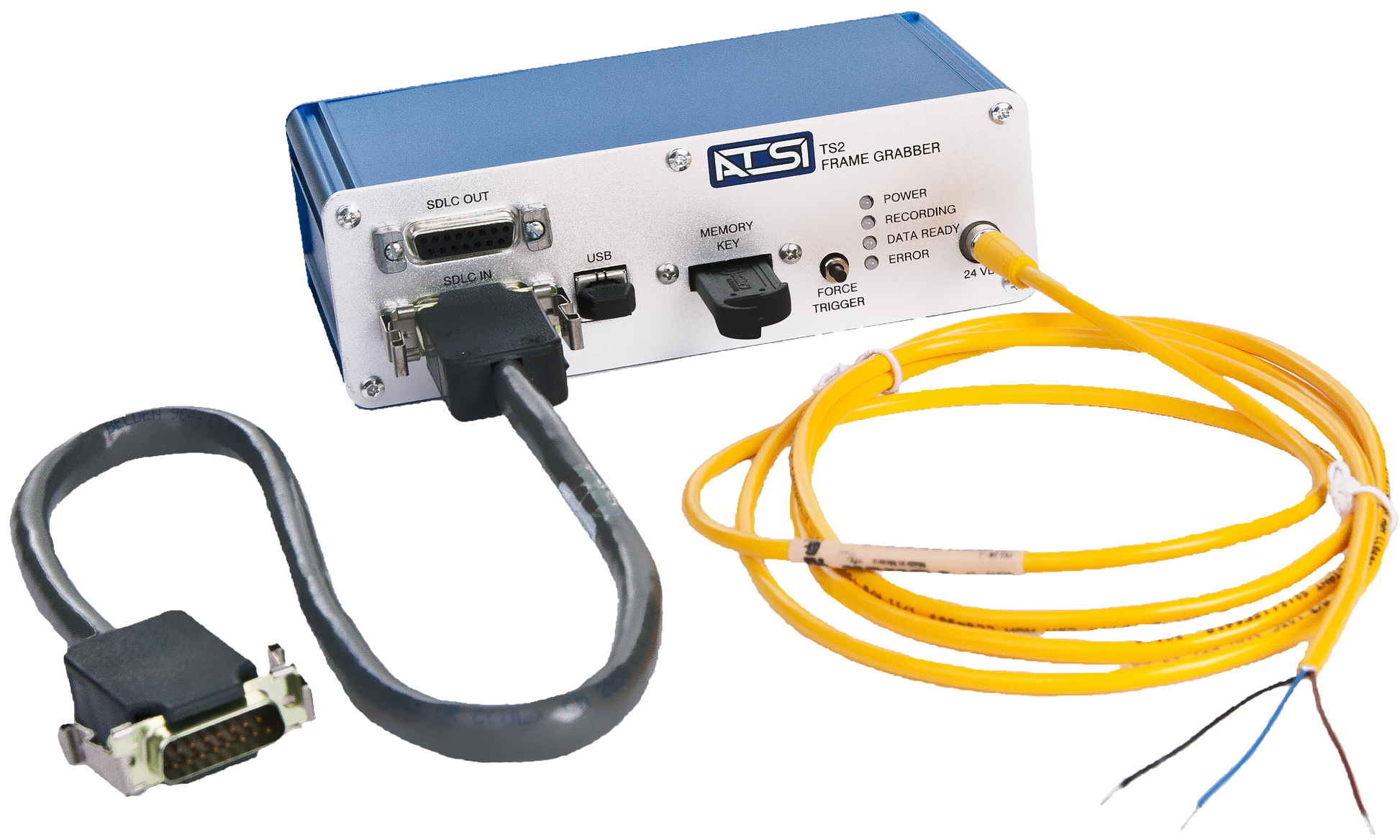

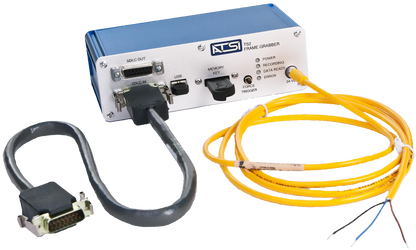

The TS2 Frame Grabber allows technicians to graphically view, sort, and analyze all SDLC frames that were transmitted in the 30 minute period leading up to the intersection going into "flash".
It connects to the SDLC bus in any NEMA TS2 cabinet and continually records all frames transmitted between the controller, BIUs, MMU, and other auxiliary devices. The frames are stored in a circular buffer that will hold approximately 20 - 30 minutes worth of data. Anytime the MMU reports that the intersection is in "flash", the frames are automatically stored to a removable memory key. A technician may then remove the key and insert it into a reader connected to a PC. Using the FrameView software application, the frames may be viewed in an easy to understand graphical format.

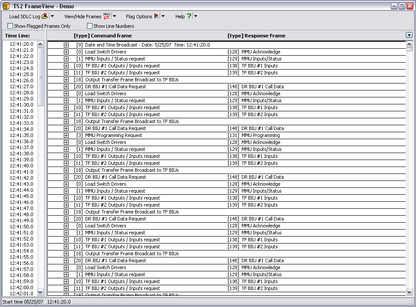

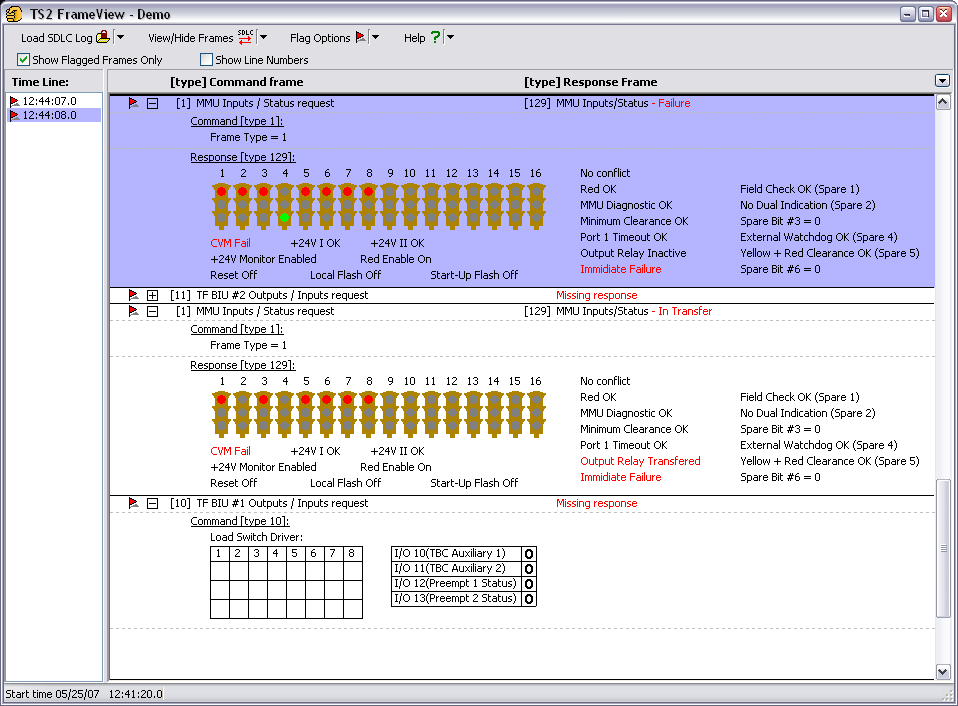

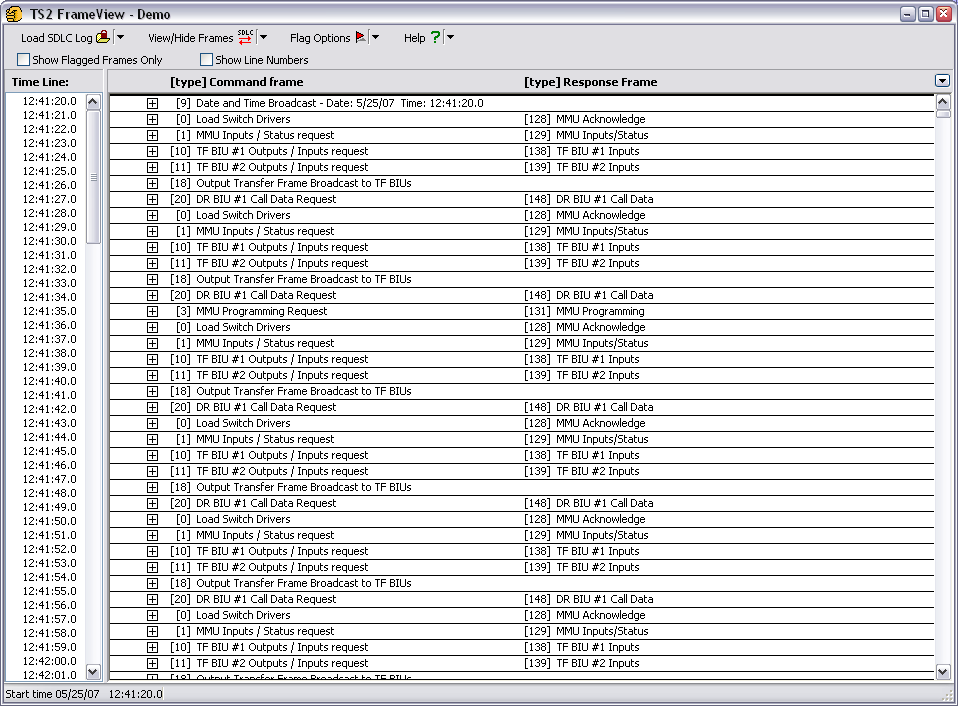

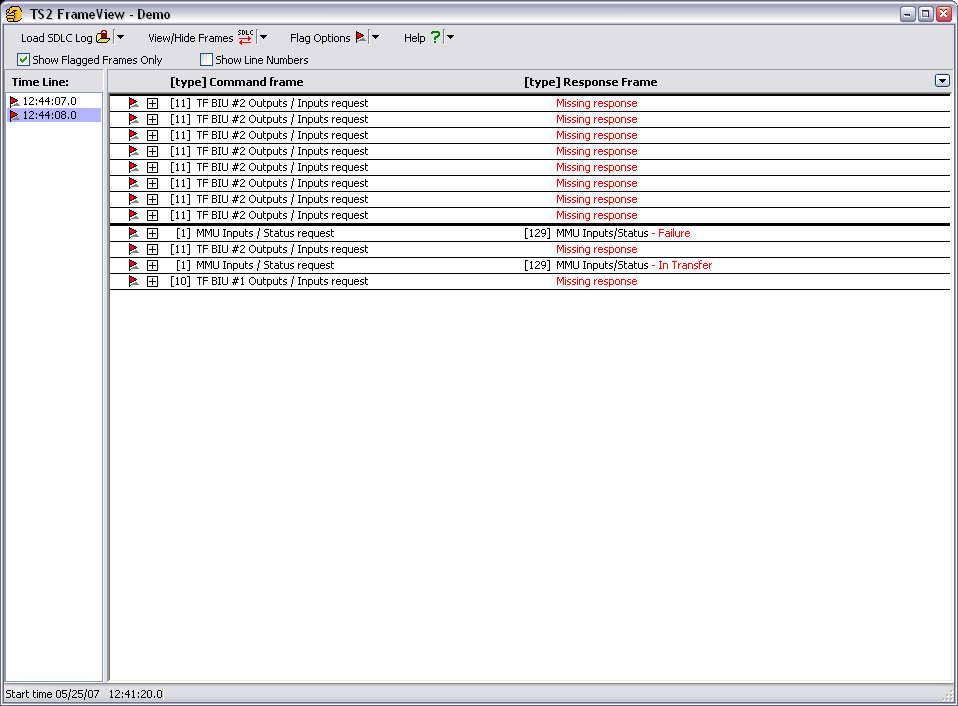

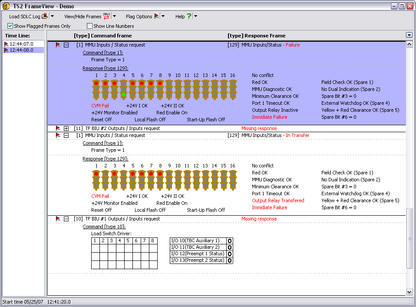

Reviewing the hundreds of thousands of frames that may be transmitted over a 30 minute period would be a nearly impossible task. This is where the power of the FrameView software application becomes quickly evident. The software groups the frames into one second time periods and displays them on a time line. Any time period that contains frames which meet certain user settable criteria will be clearly marked with a "flag". The user can simply click on the flagged area and then expand the frame to view a graphical translation of the data with any alarms, or warnings clearly displayed in red. The following conditions are examples of events that may be "flagged" : corrupted data, missing response, incorrect response, incorrect address, MMU diagnostic failure, dual display, conflict, red failure, DC voltage failures, clearance faults
Includes:
(1) Memory Token
24V Power Cable
SDLC Cable
FrameView Software (free download)
1 Year Warranty
If you do not already have one, you will also need a Memory Token Reader. (See the "Accessories" tab below)
If you are looking for repair service, please click the link to "Schedule Service" on the top of this page.
(You will need at least one Memory Token Reader in order to use the TS2 Frame Grabber)
ATSI
Memory Token Reader
✖
For use with the TS2 Frame Grabber and Memory Token Reader. One Memory Token is included in the purchase of a new TS2 Frame Grabber.
-NOT for use with the ACMT 5000. (See the Memory Key for ACMT 5000, part number: 090-0024)
ATSI
Memory Token for TS2 Frame Grabber
Optional Modifications (Modifications have to be done at ATSI's facility)
✖
The DIN Rail Adapter must be added at ATSI's facility; therefore, this item must be purchased at the same time as the new TS2 Frame Grabber or your existing TS2 Frame Grabber must be sent to ATSI.
ATSI
Installation of DIN Rail Adapter to the TS2 Frame Grabber
Carrying Case
✖
Works with the HILT 9000 Kit, Frame Grabber, Surge Suppressor Tester, The Virtual Cabinet and Accessories. (example uses are pictured. All items sold separately)
If you are needing a carrying case for the HILT 9300 Kit, see part # 005-0102-K.
Used to connect a TS2 Controller to the TVC 3800 while the TVC 3800 is acting as a TS2 Cabinet.
NOTE: This cable has blue heat shrink tubing on one end and a DB 15 connector on both ends.
